Suitable for array, columns, or usage without HF drivers
Design Notes

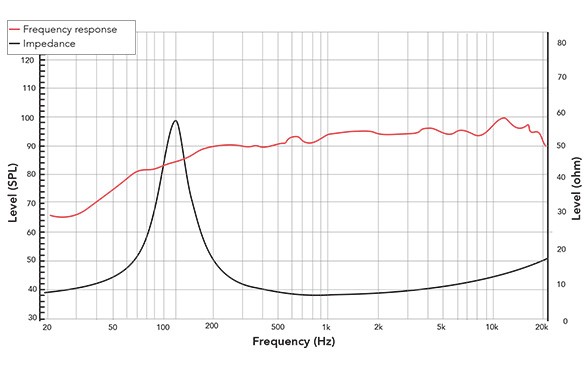

32NFR delivers incredible . It comes together with other speaker models as the next generation of our full-range drivers. Well balanced frequency response from LF to HF, low harmonic distortion, and on top of that all packed in a lightweight and compact mechanical structure. The driver was designed around neodymium ring magnet. Magnetic circuit delivers the highest level of performance, with minimum modulation distortion. The cone and surround were newly designed and optimized specifically for this model. Progressive roll surround further improves the frequency response. Our newly designed basket with typical REDCATT visual aspects sports front and rear gaskets, thus the driver can be easily mounted on both sides of baffle. Large basket openings minimize turbulences and air noise. Space bellow spider is also vented. This further improves the temperature stability of this model. The mounting surface has a flange all around, feature that greatly improves mechanical rigidity.
