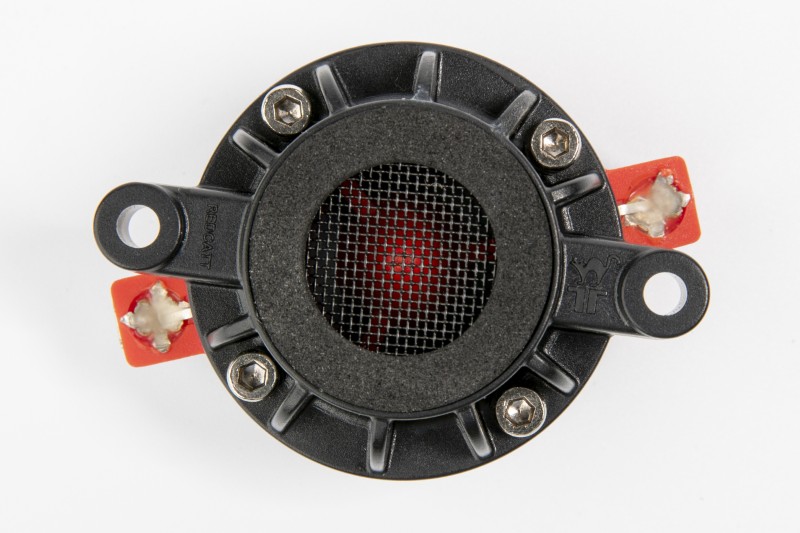

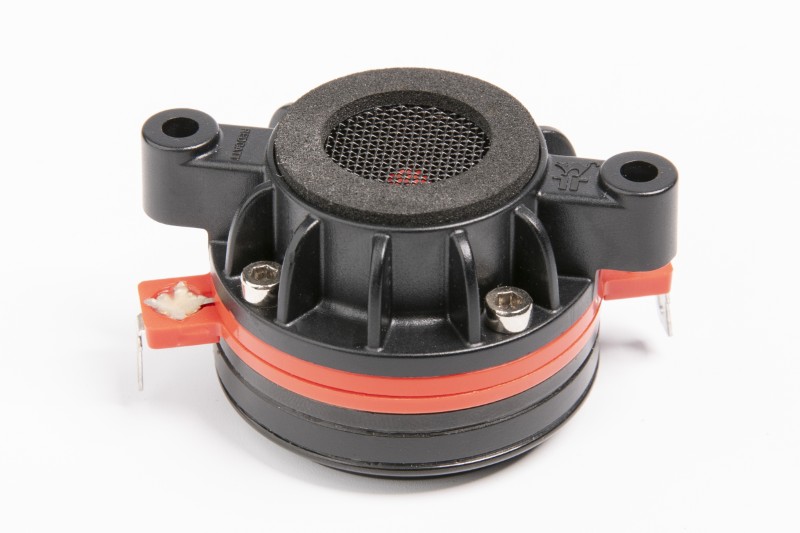

Introducing the cutting-edge 075NCD compression driver, an exceptional high-performance, high-frequency marvel tailored for professional loudspeaker systems, high-output hi-fi setups, and aftermarket car audio installations. Boasting a neodymium-based magnetic circuit, this driver generates a resilient, high-force BL field, guaranteeing precise control over the Polyimide diaphragm assembly. Delivering unrivaled frequency response and robust power handling capabilities, all through a sleek 0.75-inch exit throat.Diaphragm Design:Featuring a 19mm Polyimide diaphragm meticulously crafted as a single piece, alongside a Polyimide suspension that ensures superior durability. The unparalleled acoustic output is channeled through a bullet phase plug coupled with a 0.75-inch throat aperture.
Specifications:
General specs Nominal Diameter: 0.75 in. Rated Impedance: 8Ohm
Power handling AES Power: 20 Watts Program Power: 40 Watts
Voice Coil Diameter: 0.75 in. Winding wire: CCAW Former: kapton

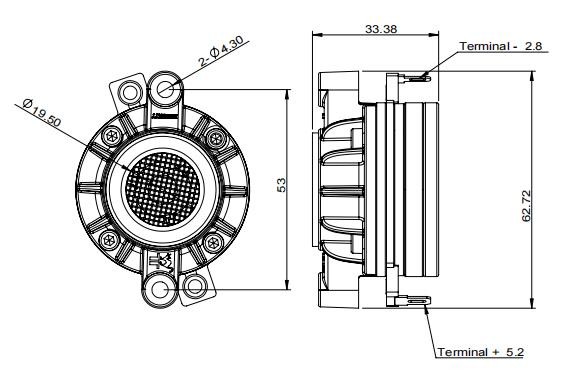

Design details Dome material: Polymer Magnet material: Neodymium Surround Material: Polymer Overall diameter: 59.5 mm Bolt circle diameter: 53 mm Throat diameter: 19 mm Number of mounting holes: 2 Depth (flange to rear): 33.38 mm Net weight: 0.17 kg
