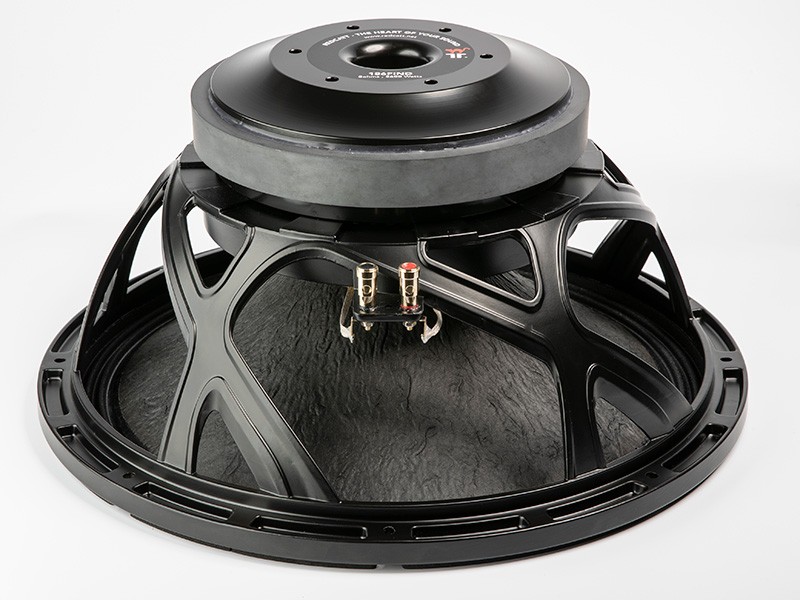

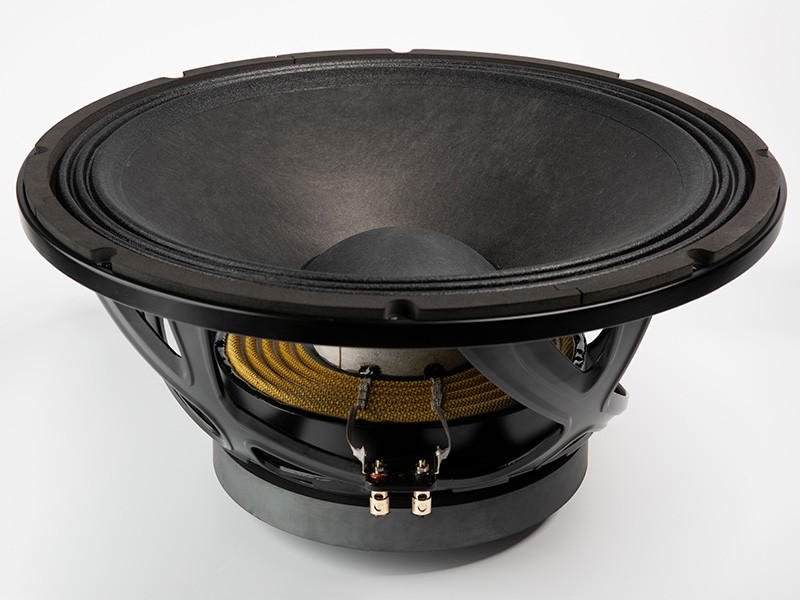

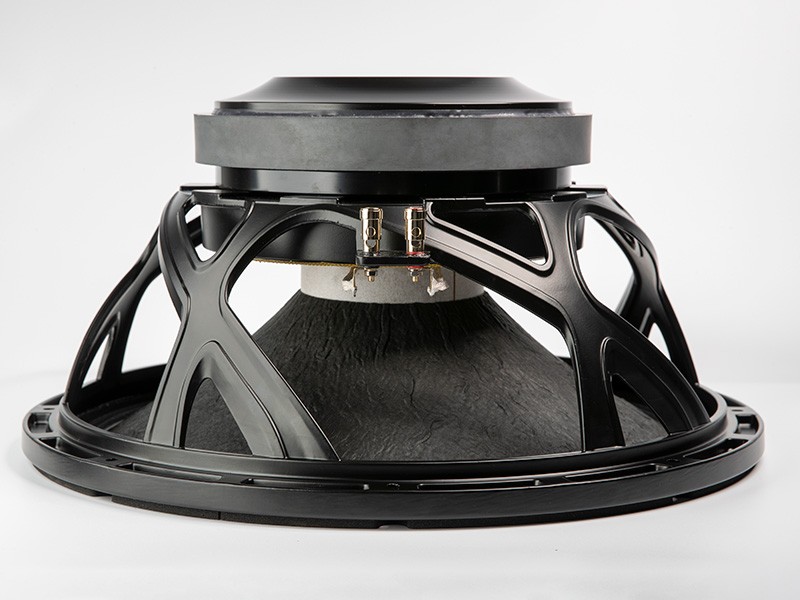

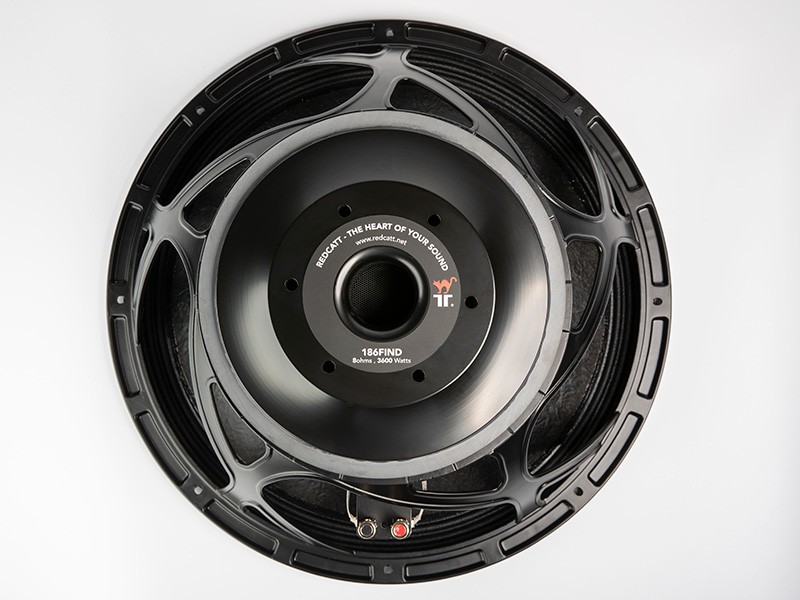

Introducing 186FIND, the powerhouse woofer designed for superior audio performance. With a staggering 3,600 watts of peak power and a 4.5" voice coil that can withstand temperatures exceeding 350°C, this woofer is built to impress. Featuring a new paper pulp mixed with glass fibers, high excursion surround, and an extra large spider, it delivers unparalleled longevity and bass. The motor system´s high grade ferrite magnet creates a strong symmetrical flux field, while the extended space below the voice coil allows for maximum excursion. Get ready to be blown away by the 186FIND woofer.
Specifications:
General specs Nominal Diameter: 18 in. Rated Impedance: 8 Ohm
Power handling AES Power: 1,800 Watts Program Power: 3,600 Watts
Voice Coil Diameter: 4.5 in. Winding wire: Copper Former: kapton Winding height: 31.8 mm

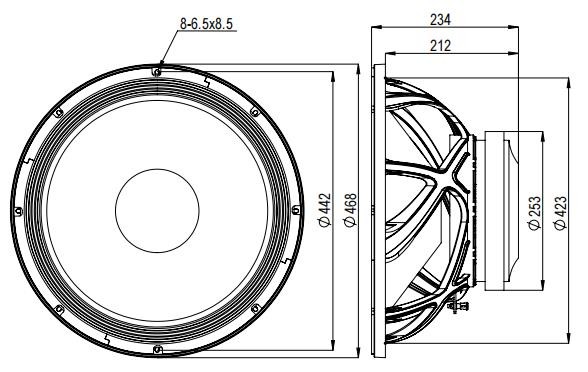

Design details Surround Material: Fabric Cone material: Paper Spider: Conex Plate thickness: 15 mm Peak to peak linear cone Displacement 19 mm Overall diameter: 468 mm Bolt circle diameter: 442 mm Baffle cutout dia.: 423 mm Number of mounting holes: 8 Depth (flange to rear): 212 mm Net weight: 19.3 kg
