REDCATT 202FCD - 8 Ohm

Nur Händler - bitte hier anmelden.

Art-Nr: 11715
Zusatzinfo: 1,4" Ferrite Compression Driver

Keine Lieferung nach / no shipping to: HU, RU

REDCATT 202FCD - 8 Ohm 1,4" Compression Driver Key Features Designed for applications... mehr

Menü schließen

Produktinformationen "REDCATT 202FCD - 8 Ohm"

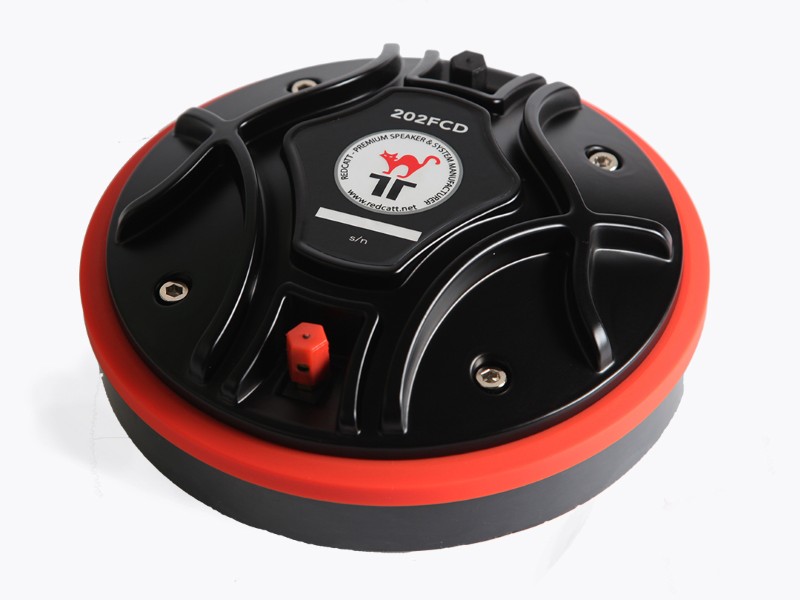

REDCATT 202FCD - 8 Ohm 1,4" Compression Driver

Key Features

Designed for applications With low budget
Polyimide surround with pure titanium dome

Design Notes

The 202FCD compression driver is a high-performance, high-frequency device ideal for professional loudspeaker systems. The driver’s ferrite based magnetic circuit provides a robust, high force BL field providing precision control of the pure titanium diaphragm assembly. Featuring 1.4inch exit throat. The suspension is made of polyimide material, providing optimum control over the diaphragm movement. The design has been optimized to have a great level of performance at very affordable price levels. The drivers are suitable for 2-way and multi-way speaker systems. Dome Assembly Design REDCATT has designed the pure titanium dome to be bonded to the polyimide surround. This solution greatly improves the control of the dome pistonic motion, having a positive effect on the transient response. REDCATT uses state of the art adhesives in all assembly steps. Our voice coil to dome bonding is a unique process, developed to greatly improve the power handling capabilities. REDCATT unique and precise adhesives dispensing, combined with our in-house developed dome treatments are further improving the long term reliability of this product.

Specifications
General Specs

Horn Exit Diameter: 1,4 inch
Nominal Diameter: 3 inch
Rated Impedance: 8 Ohm

Power Handling

AES Power: 100 Watts
Program Power: 200 Watts

Voice Coil

Diameter: 3 inch
Winding wire : CCAR
Former: kapton
Winding height: 2,6 mm

T/S Parameters

Resonant frequency: 500Hz
Re: 6.2ohm
Qes: n/a
Qms: n/a
Qts: n/a
VAS: n/a
Sd: n/a
Mms: n/a
BL: n/a
Le: n/a
Sensivity: 108 dB

Design Details

Surround material: Polymer
Cone material: Titanium
Spider: n/a
Plate thickness: 3,6 mm
Peak to peak linear cone displacement: n/a mm

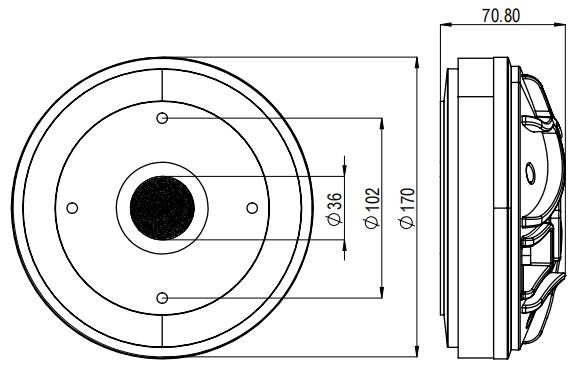

Overall diameter: 170 mm
Bolt circle diameter: 102 mm
Baffle cutout dia: n/a mm
Number of mounting holes: 4
Depth (flange to rear): 70,8 mm
Net weight: 5kg
