REDCATT 200NTI - 8 Ohm

REDCATT 200NTI - 8 Ohm 1,4" Compression Driver

Key Features

• Ultra high force magnetic system with back pressure regulation features
• Very high spl
• CNC machined, precise aluminum phase plug

Design Notes

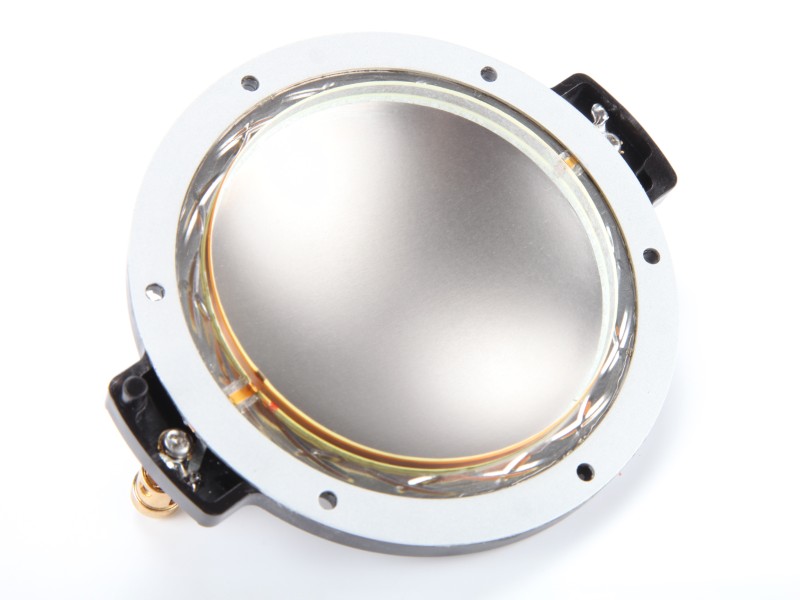

The 200NTi compression driver is a high performance high frequency device ideal for professional loudspeaker systems. The driver’s advanced neodymium based magnetic circuit provides a compact, yet robust, ultra high force BL field with precision control of the pure titanium diaphragm assembly. The unit delivers incredibly linear frequency response and very high power handling through 1.4inch exit throat. The driver features a 75mm pure titanium diaphragm formed as single piece with titanium suspension consisting resonance control features. REDCATT uses advanced manufacturing and quality control techniques, resulting in superb consistency of all our compression drivers. Magnetic Circuit Design Redcatt has focused on designing an optimized lightweight neodymium based magnetic circuit capable of delivering the highest level of performance. This effort has resulted in a device that offers uncompromising performance featuring high efficiency, exceptional transient response and controlled distortion characteristics. The annular phase plug is CNC machined from a single block of aircraft grade aluminum. Our phase plug is true high-tech masterpiece. The reached shape and aligning tolerances are beyond what have been commercially produced

Specifications
General Specs

• Horn Exit  Diameter: 1,4 inch
• Rated Impedance: 8 Ohm

Power Handling

• AES Power: 100 Watts
• Program Power: 200 Watts

Voice Coil

• Diameter: 3 inch
• Winding wire : CCAR
• Former: kapton
• Winding height: 2,9 mm

T/S Parameters

• Resonant frequency: 800Hz
• Re: 5.9ohm
• Qes: n/a
• Qms: n/a
• Qts: n/a
• VAS: n/a
• Sd: n/a
• Mms: n/a
• BL: n/a
• Le: n/a
• Sensivity: 111 dB

Design Details

• Surround material: Titanium
• Cone material: Titanium
• Spider: n/a
• Plate thickness: 3 mm
• Peak to peak linear cone displacement: n/a mm

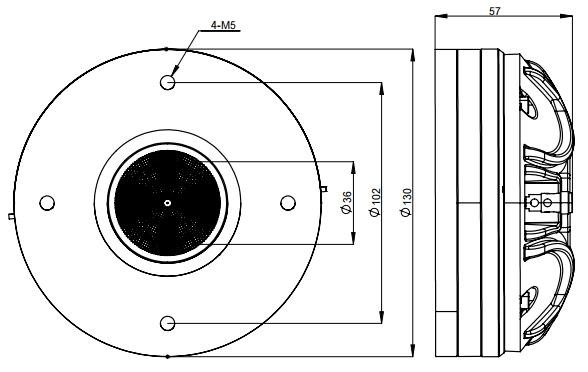

• Overall diameter: 130 mm
• Bolt circle diameter: 102 mm
• Baffle cutout dia: n/a mm
• Number of mounting holes: 4
• Depth (flange to rear): 57 mm
• Net weight: 2.9kg
