REDCATT 140NCD - 8 Ohm

Nur Händler - bitte hier anmelden.

Art-Nr: 11708
Zusatzinfo: Neodymium Compression Driver

Keine Lieferung nach / no shipping to: HU, RU

REDCATT 140NCD - 8 Ohm Compression Driver Key Features Very high performance at small... mehr

Menü schließen

Produktinformationen "REDCATT 140NCD - 8 Ohm"

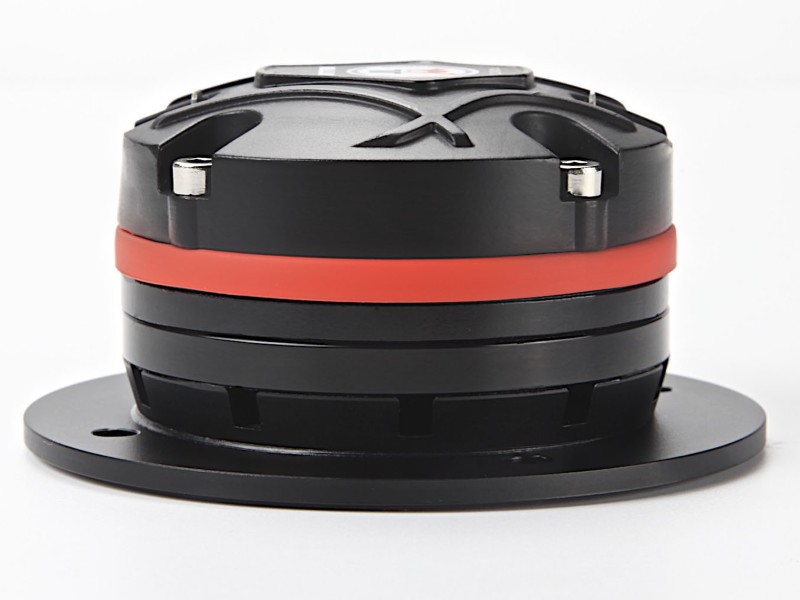

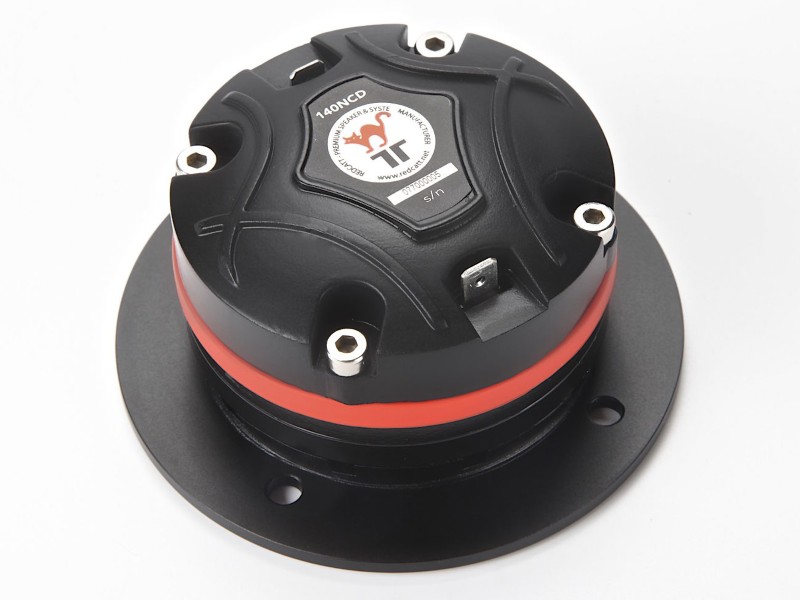

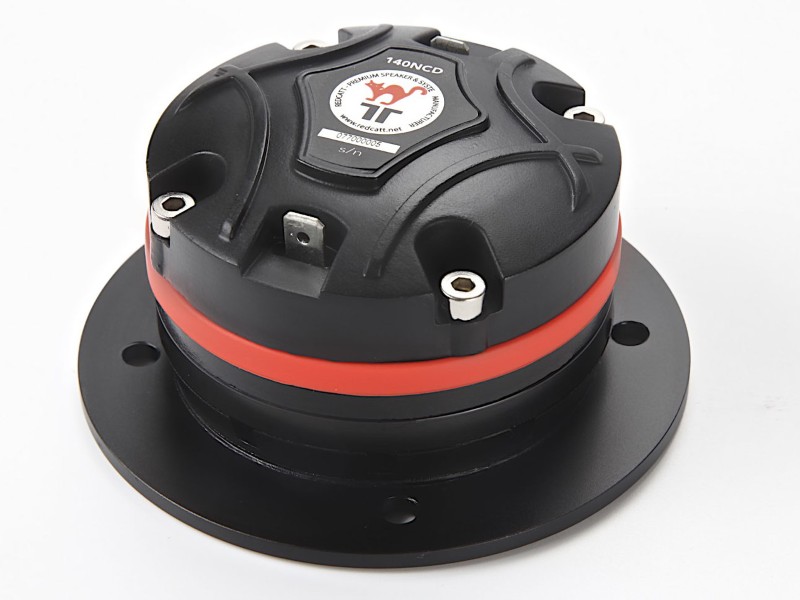

REDCATT 140NCD - 8 Ohm Compression Driver

Key Features

Very high performance at small size
2-way and multi-way speaker systems

Design Notes

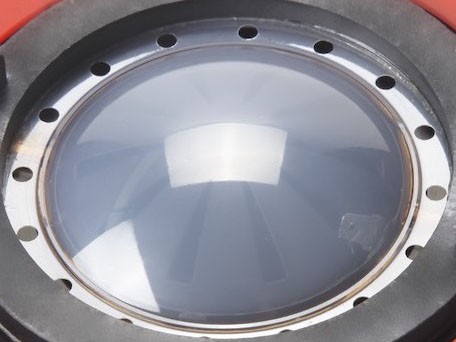

The 140NCD compression driver is a high performance high frequency device ideal for professional loudspeaker systems. In a ultra compact size, the driver’s neodymium based magnetic circuit provides a robust, high force BL field providing precision control of the Polyimide diaphragm assembly. The unit delivers extended frequency response and high power handling through 1.3inch exit throat. The suspension has designed and FEM optimized venting features to lover the harmonic distortion. The venting holes also improves the control over the dome movements at low frequencies. 140NCD ultra compact design ensures the driver can be used in enclosure designs where the space is very limited, such as line array systems. Magnetic Circuit Design Redcatt has focused on designing an optimized neodymium based magnetic circuit capable of delivering the highest level of performance and value. The neodymium circuit is optimized to generate the minimum amount of flux modulation providing exceptional stability. This effort has resulted in a device that offers uncompromising performance featuring high efficiency, exceptional transient response and controlled distortion characteristics, all that in very compact size.

Specifications
General Specs

Diameter: 1,4 inch
Rated Impedance: 8 Ohm

Power Handling

AES Power: 30 Watts
Program Power: 60 Watts

Voice Coil

Diameter: 1,4 inch
Winding wire : CCAR
Former: kapton
Winding height: 2,5 mm

T/S Parameters

Resonant frequency: 1200Hz
Re: 5.5ohm
Qes: n/a
Qms: n/a
Qts: n/a
VAS: n/a
Sd: n/a
Mms: n/a
BL: n/a
Le: n/a
Sensivity: 109 dB

Design Details

Surround material: Polymer
Cone material: Polymer
Spider: n/a
Plate thickness: 3 mm
Peak to peak linear cone displacement: n/a mm

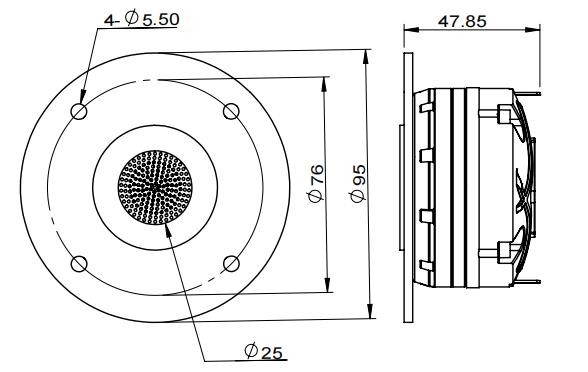

Overall diameter: 95 mm
Bolt circle diameter: 76 mm
Baffle cutout dia: n/a mm
Number of mounting holes: 4
Depth (flange to rear): 47,85 mm
Net weight: 538g

Weiterführende Links zu "REDCATT 140NCD - 8 Ohm"

mehr

Menü schließen

Hersteller "RedCatt"

Hersteller:
DongGuan Redcatt Electrical Technology co., Ltd
5th & 6th floor, Building D, Xinlongxin Industrial，
Zhongxin Golden Road 209,
Dalang, Dongguan, China, Zip code 523785

verantwortliche Person: Bald OHG

Weiterführende Links des Herstellers

REDCATT 140NCD - 8 Ohm Compression Driver Key Features Very high performance at small... mehr

Verfügbare Downloads:

Download Datenblatt / datasheet

REDCATT 140NCD - 8 Ohm Compression Driver Key Features Very high performance at small... mehr

Menü schließen

"REDCATT 140NCD - 8 Ohm"

Magnet

Neodym

Grösse

1 Zoll

Impedanz

8 Ohm

Belastbarkeit nom. (W)

Fs (Hz)

1200
