REDCATT 140NCD - 4 Ohm

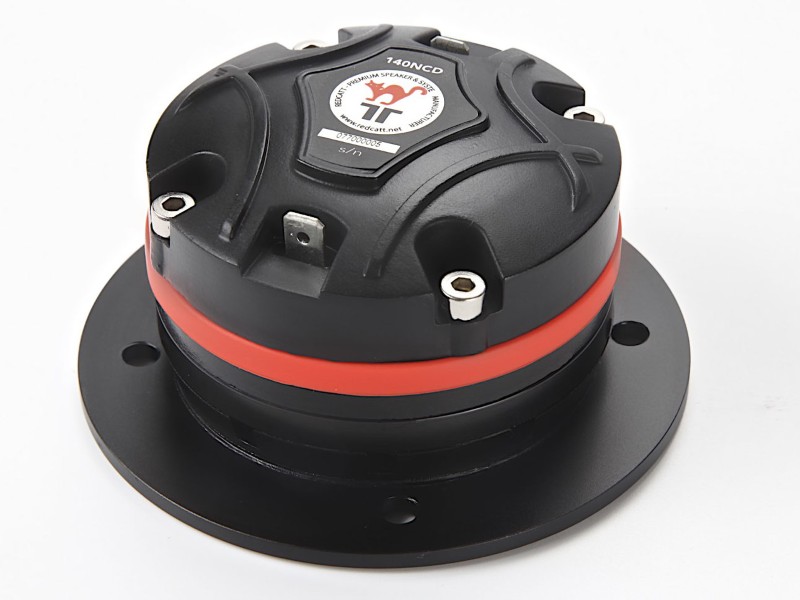

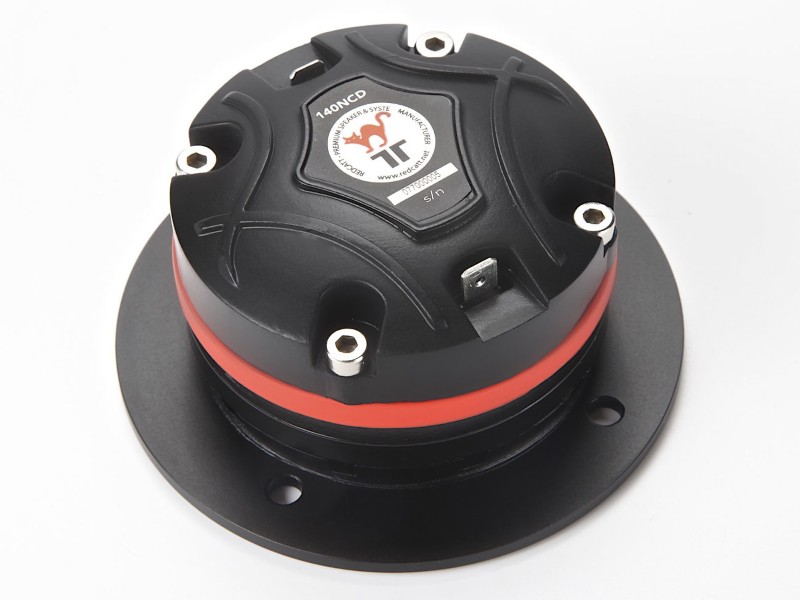

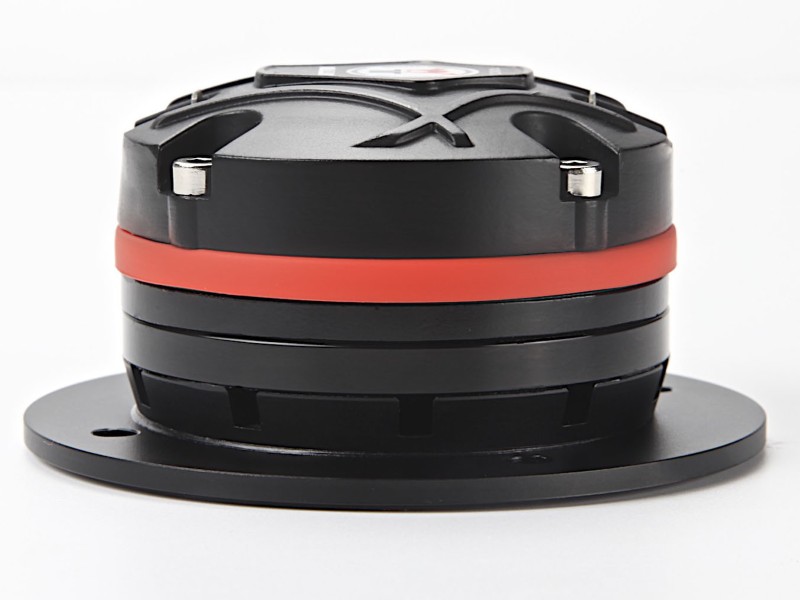

REDCATT 140NCD - 4 Ohm Compression Driver

Key Features

• Very high performance at small size
• 2-way and multi-way speaker systems

Design Notes

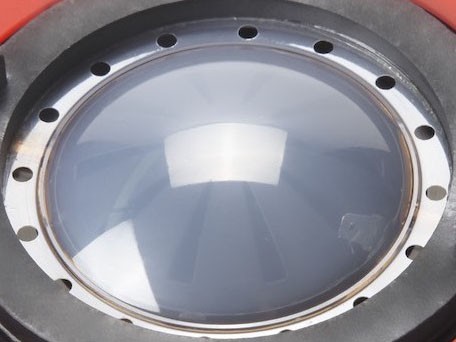

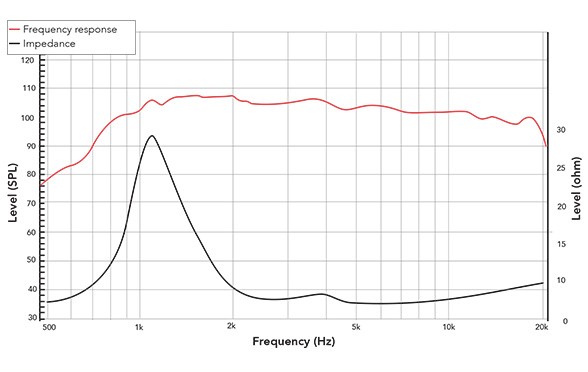

The 140NCD compression driver is a high performance high frequency device ideal for professional loudspeaker systems. In a ultra compact size, the driver’s neodymium based magnetic circuit provides a robust, high force BL field providing precision control of the Polyimide diaphragm assembly. The unit delivers extended frequency response and high power handling through 1.3inch exit throat. The suspension has designed and FEM optimized venting features to lover the harmonic distortion. The venting holes also improves the control over the dome movements at low frequencies. 140NCD ultra compact design ensures the driver can be used in enclosure designs where the space is very limited, such as line array systems. Magnetic Circuit Design Redcatt has focused on designing an optimized neodymium based magnetic circuit capable of delivering the highest level of performance and value. The neodymium circuit is optimized to generate the minimum amount of flux modulation providing exceptional stability. This effort has resulted in a device that offers uncompromising performance featuring high efficiency, exceptional transient response and controlled distortion characteristics, all that in very compact size.

Specifications
General Specs

• Diameter: 1,4 inch
• Rated Impedance: 4 Ohm

Power Handling

• AES Power: 30 Watts
• Program Power: 60 Watts

Voice Coil

• Diameter: 1,4 inch
• Winding wire : CCAR
• Former: kapton
• Winding height: 2,5 mm

T/S Parameters

• Resonant frequency: 1200Hz
• Re: 5.5ohm
• Qes: n/a
• Qms: n/a
• Qts: n/a
• VAS: n/a
• Sd: n/a
• Mms: n/a
• BL: n/a
• Le: n/a
• Sensivity: 109 dB

Design Details

• Surround material: Polymer
• Cone material: Polymer
• Spider: n/a
• Plate thickness: 3 mm
• Peak to peak linear cone displacement: n/a mm

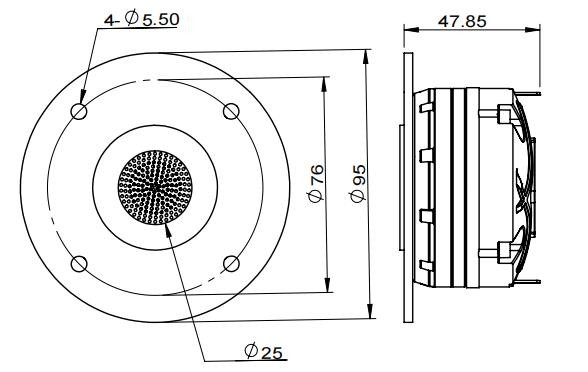

• Overall diameter: 95 mm
• Bolt circle diameter: 76 mm
• Baffle cutout dia: n/a mm
• Number of mounting holes: 4
• Depth (flange to rear): 47,85 mm
• Net weight: 538g
