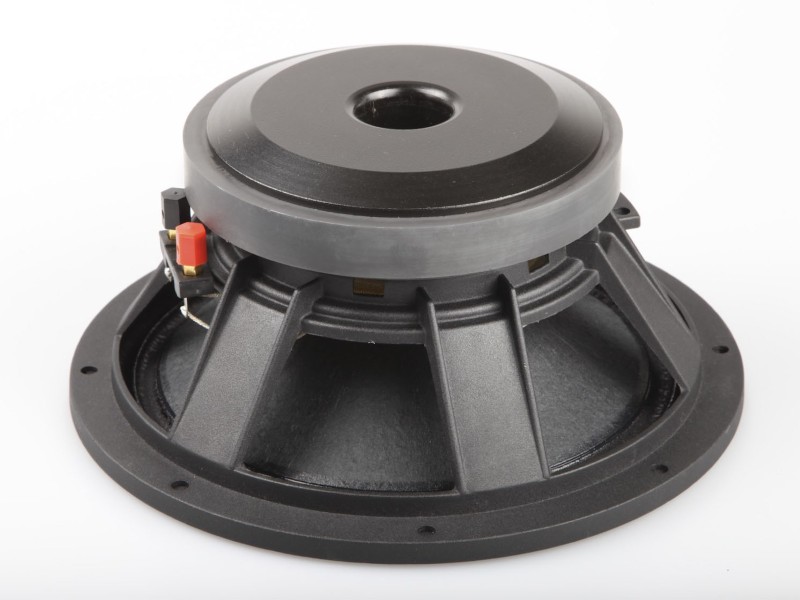

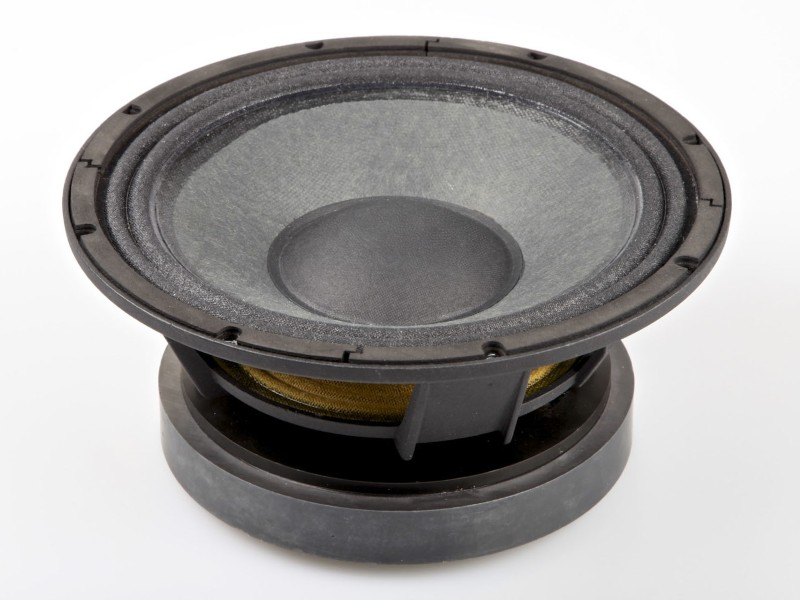

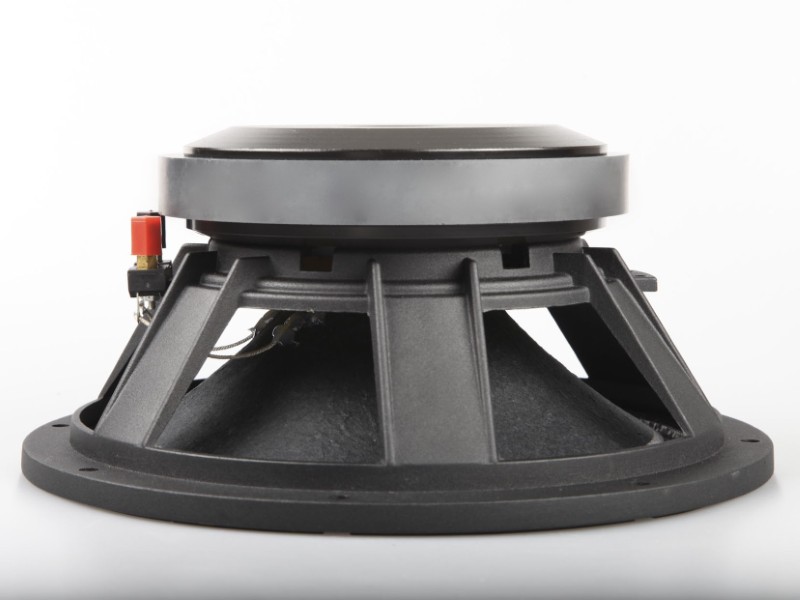

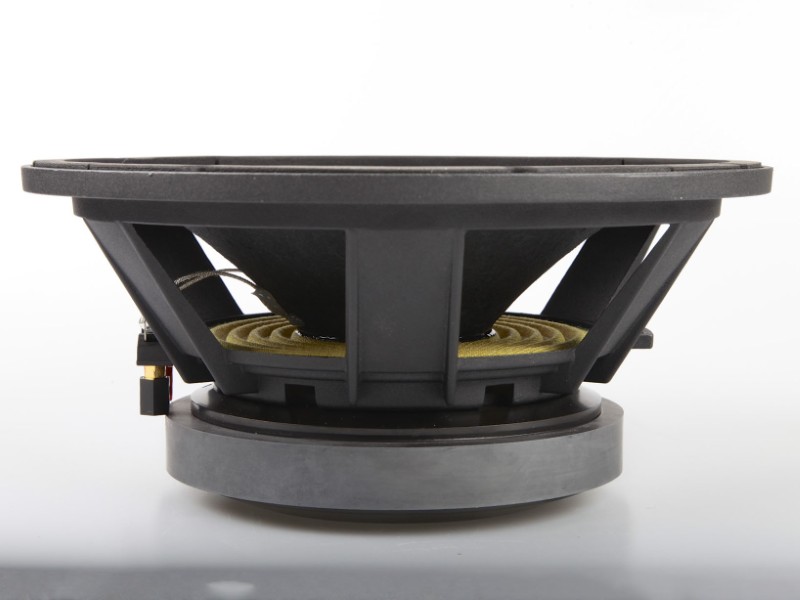

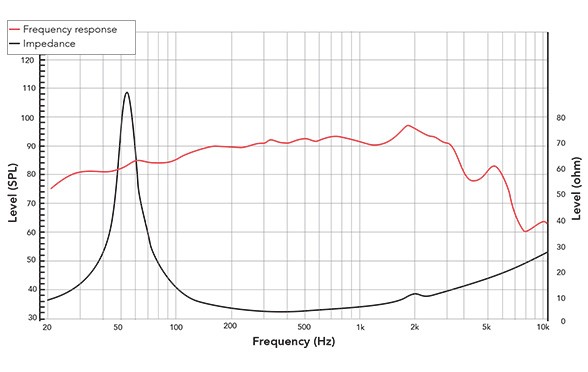

The 10FIND is a high efficiency, (97 dB 1watt / 1 meter) 10-inch woofer with linear frequency response characteristics, high power handling capability, while generating ultra low harmonic distortion artifacts. The 10FIND uses a lightweight glass fiber loaded cone assembly along with a high excursion double roll surround. This combination provides a lightweight, yet strong, piston. Magnetic Circuit REDCATT engineers have developed a ferrite based magnetic circuit, capable of delivering the highest level of performance, providing a consistent, high integrity magnetic flux gap, ultra low distortion characteristic and high efficiency cooling system. The magnetic structure has integrated two aluminum shorting rings. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability.
