MUSTER RedCatt 202NTi - 8 Ohm

MUSTER zum 14 Tage-Test

Rechnungsbetrag (ohne Versandkosten) wird bei Rücksendung innerhalb 14 Tagen gut geschrieben.

Key features:

• Very compact design
• Pure titanium dome with surround integrated resonance control features
• Portable products, 2-way and multi-way systems, line-array applications

Design notes:

Introducing the 202NTi: Elevating sound performance to new heights! With cutting-edge technology and precision engineering, this compression driver takes your audio experience to the next level. Designed with a newly updated magnetic circuit, phase plug, voice coil, and dome, it outshines its predecessor, the 201NTi. No compromises on sound quality - only pure, powerful sound in a compact package. The Neodymium magnetic circuit offers unrivaled control, paired with a 1.4-inch exit throat and titanium diaphragm for crystal-clear sound. Featuring a groundbreaking dome assembly design, the 202NTi boasts seamless integration of components for superior frequency response and power handling. Each step of the assembly process is meticulously executed with state-of-the-art adhesives, ensuring unmatched reliability and performance. Redefine your audio experience with the 202NTi - where innovation meets excellence.

Specifications:
General specs
Nominal Diameter:    3 in.
Rated Impedance:    8 Ohm

Power handling
AES Power:    100 Watts
Program Power:    200 Watts

Voice Coil
Diameter:    3 in.
Winding wire:    CCAW
Former:    kapton

T/S Parameters
Resonant frequency:    700 Hz
Nominal sensitivity:    109 dB
Re:    5.9 ohm

Design details
Dome material:    Titanium
Surround Material:    Titanium

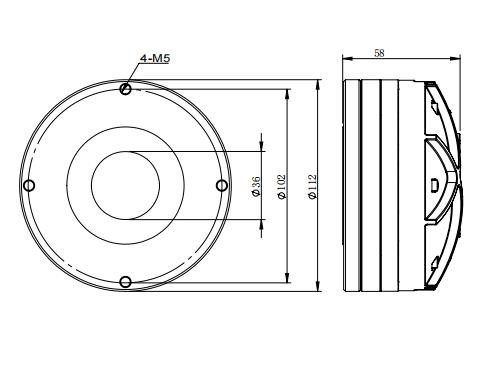

Overall diameter:    112 mm
Bolt circle diameter:    102 mm
Throat diameter:    36 mm
Number of mounting holes:    4
Depth (flange to rear):    58 mm
Net weight:    1.9 kg
