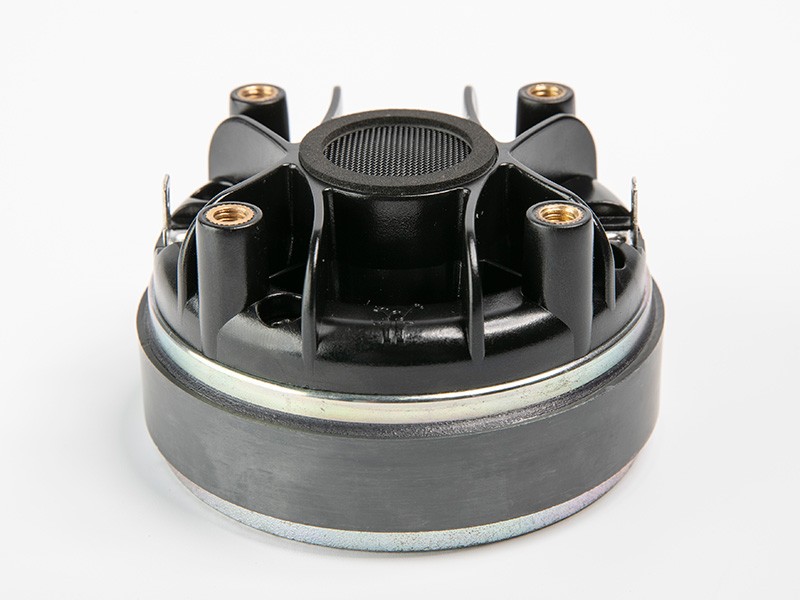

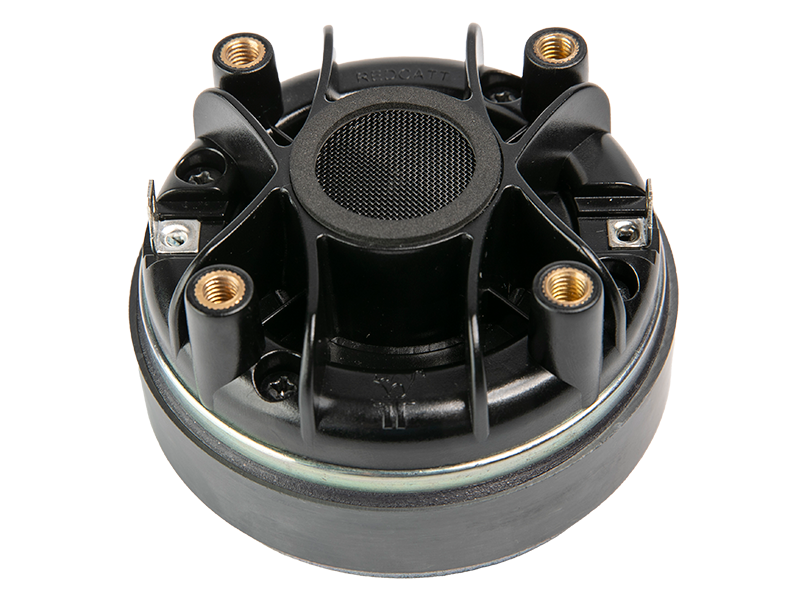

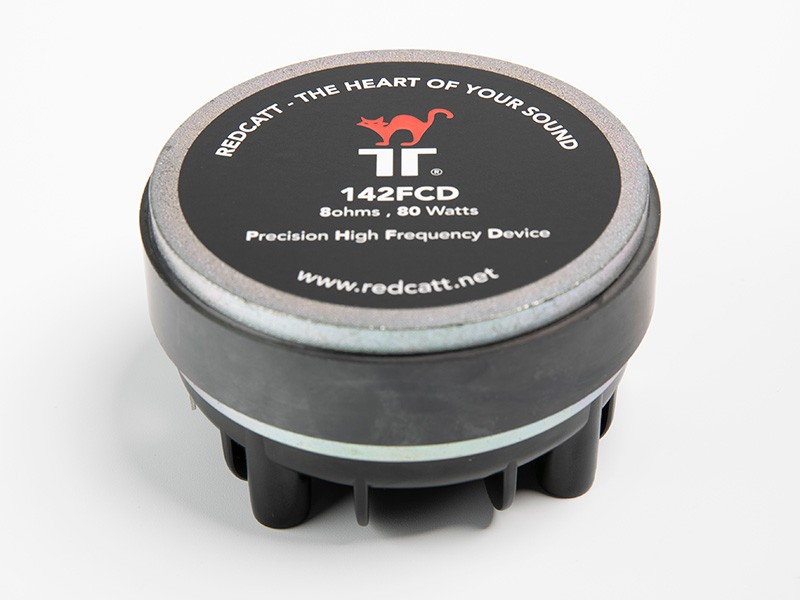

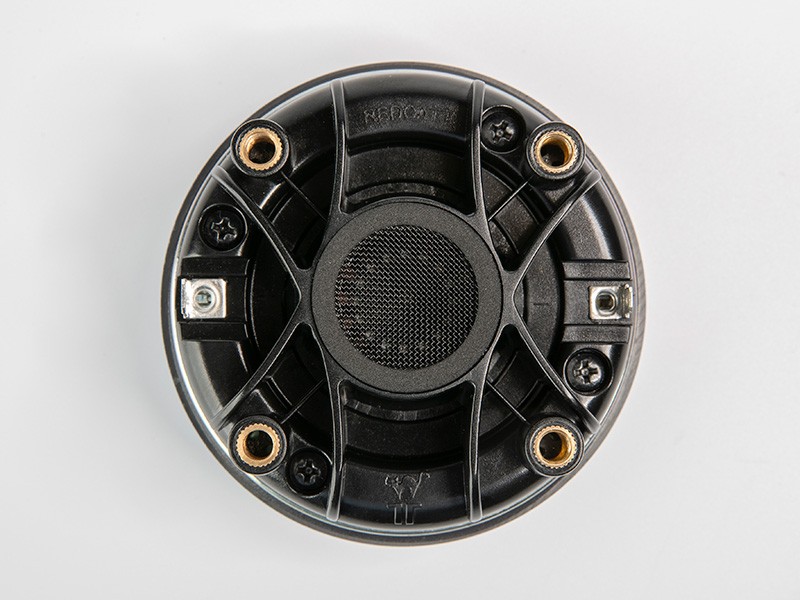

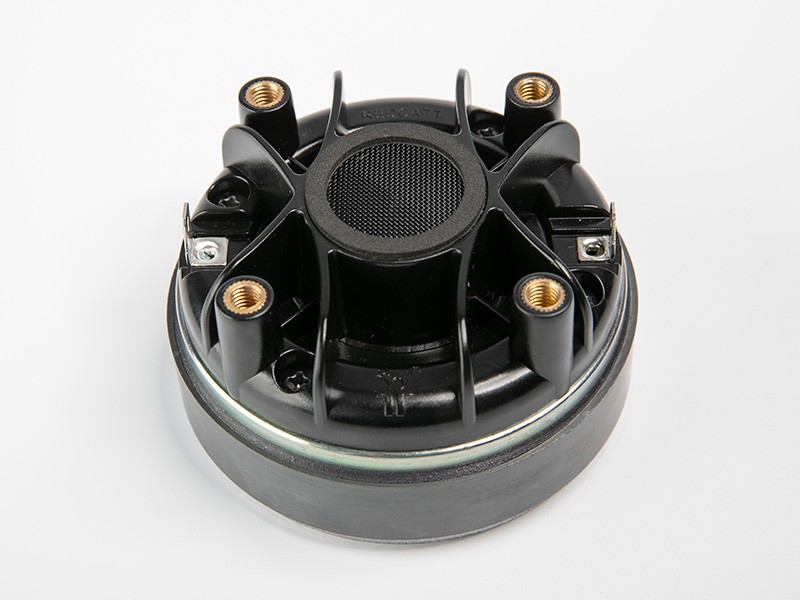

MUSTER RedCatt 142FCD - 8 Ohm

MUSTER zum 14 Tage-Test

Rechnungsbetrag (ohne Versandkosten) wird bei Rücksendung innerhalb 14 Tagen gut geschrieben.

Key features:

• Very high SPL, low Fs
• High power handling
• Smooth frequency response in working range

Design notes:

Introducing our latest innovation – the 142FCD compression driver! Developed using advanced FEM techniques, this driver outperforms many of our competitor products. With a resonant frequency of 1kHz, it allows for a lower frequency crossover point, while delivering very high SPL and a natural rolloff in high frequencies, making it a breeze to implement in your high-quality sound systems.But that´s not all – our state-of-the-art robotic dome forming is at play here too. The result? Highly precise and consistent polymer domes that further elevate the exceptional performance of this driver. Moreover, the robust ferrite magnetic circuit delivers a high B field to the edge-wound voice coil, which is carefully attached to the dome by the best available adhesives. This not only ensures precise and consistent performance but also enhances the high power handling capabilities of the 142FCD compression driver. Experience the next level of audio quality with the 142FCD compression driver - where innovation meets superior craftsmanship.

Specifications:
General specs
Nominal Diameter:    1.4 in.
Rated Impedance:    8 Ohm

Power handling
AES Power:    35 Watts
Program Power:    70 Watts

Voice Coil
Diameter:    1.4 in.
Winding wire:    CCAW
Former:    kapton

T/S Parameters

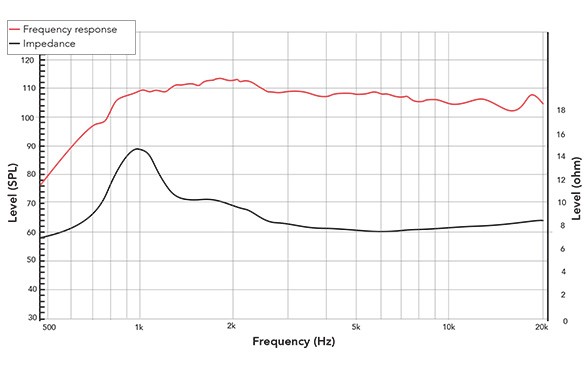

Resonant frequency:    1,000 Hz
Nominal sensitivity:    105 dB
Re:    6 ohm

Design details
Dome material:    Polymer
Surround Material:    Polymer

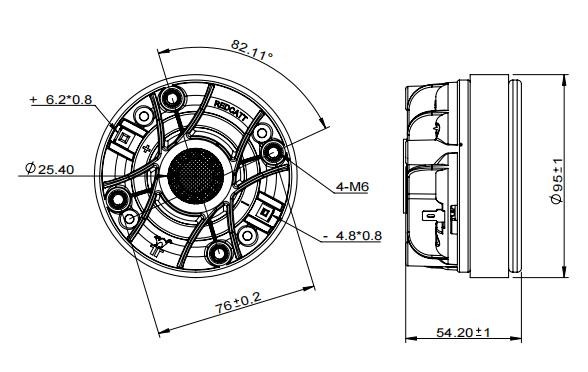

Overall diameter:    95 mm
Bolt circle diameter:    76 mm
Throat diameter:    25.4 mm
Number of mounting holes:    4
Depth (flange to rear):    54.2 mm
Net weight:    1.25 kg
