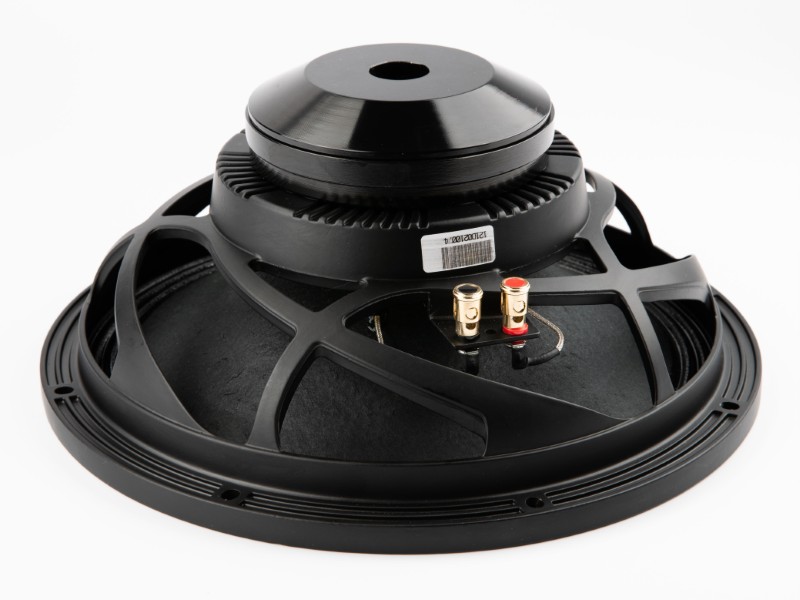

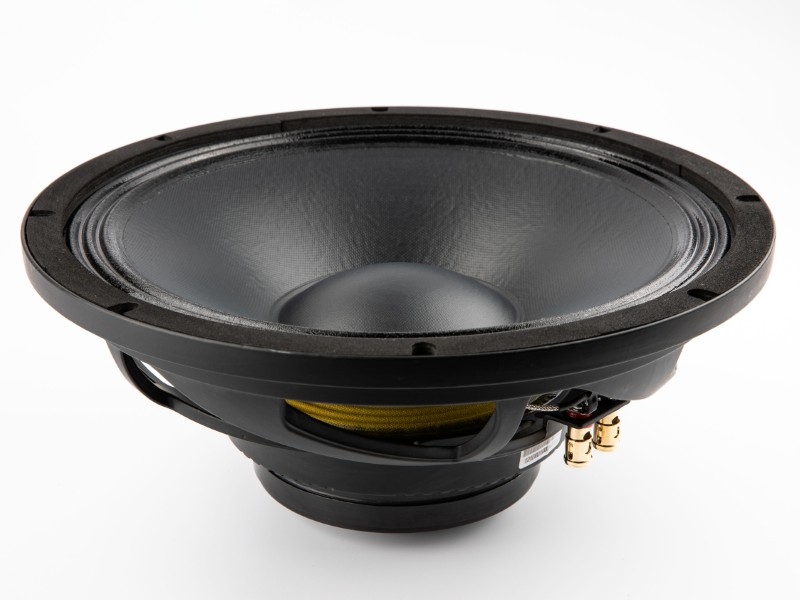

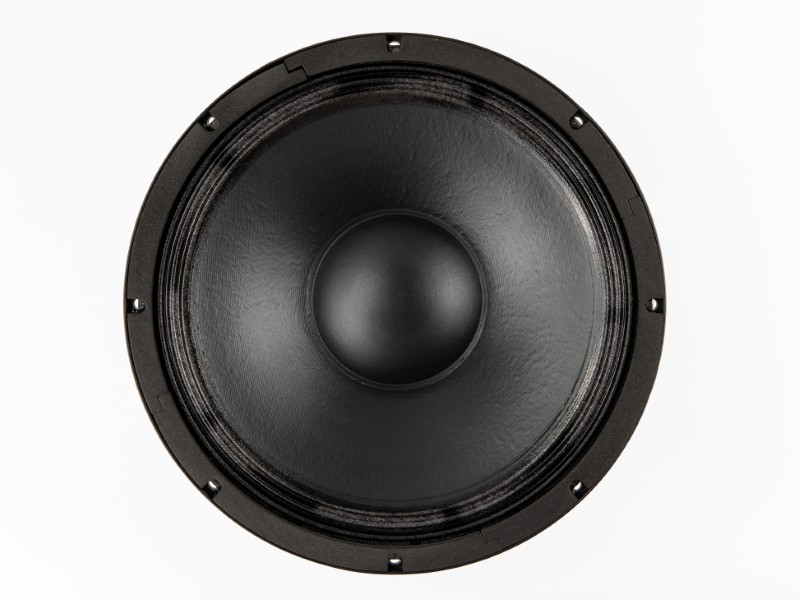

REDCATT 121NPM - 8 Ohm Mid-woofer

Key Features

• Very high efficiency mid-woofer

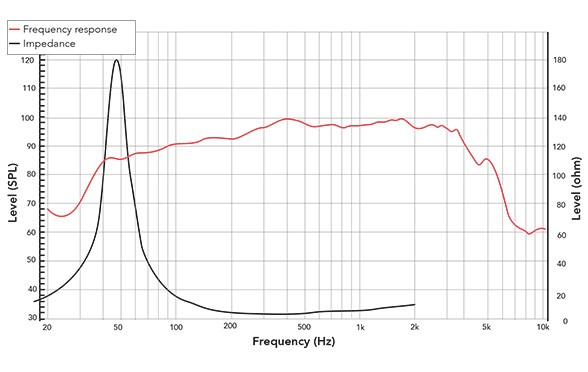

• Linear frequency response, low harmonic distortion
• Lightweight carbon fiber loaded paper cone, nomex spider

Design Notes

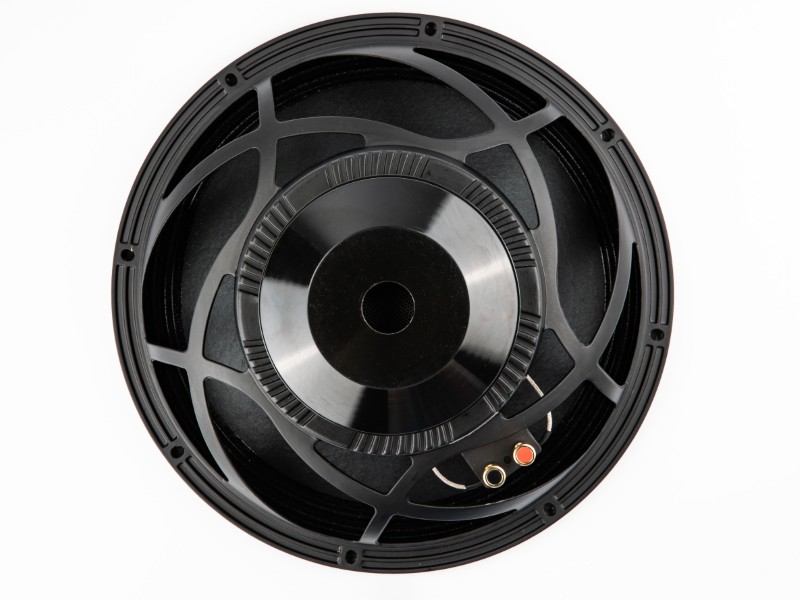

The 121NPM is a ultra high efficiency, (101dB 1watt / 1 meter) 12-inch mid bass woofer with incredibly linear frequency response characteristics, extreme high power handling capability while generating low harmonic distortion artifacts.- The 121NPM uses a lightweight carbon fiber loaded cone assembly along with a precision double roll constant geometry surround. This combination provides remarkable strength, high efficiency and a excursion linearity of 7.5mm. Magnetic Circuit REDCATT engineers have developed a lightweight, neodymium outside ring based magnetic circuit capable of delivering the highest level of performance providing a consistent, high integrity magnetic flux gap, ultra low distortion characteristic and high efficiency cooling system. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability.

Specifications
General Specs

• Diameter: 12 inch
• Rated Impedance: 8 Ohm

Power Handling

• AES Power: 450 Watts
• Program Power: 900 Watts

Voice Coil

• Diameter: 3 inch
• Winding wire : CCAW
• Former: Glass Fiber
• Winding height: 13 mm

T/S Parameters

• Resonant frequency: 50Hz
• Re: 6.0ohm
• Qes: 0,16
• Qms: 7,51
• Qts: 0,16
• VAS: 59.2L
• Sd: 531cm2
• Mms: 66.7g
• BL: 27.8
• Le: 0,51
• Sensivity: 99,97 dB

Design Details

• Surround material: Fabric
• Cone material: Paper
• Spider: Nomex
• Plate thickness: 10 mm
• Peak to peak linear cone displacement: 11,5 mm
• Overall diameter: 315 mm
• Bolt circle diameter: 298 mm
• Baffle cutout dia: 285 mm
• Number of mounting holes: 8
• Depth (flange to rear): 123,5 mm
• Net weight: 4kg
