REDCATT 10FHW-117 - 4 Ohm

Key features:

• Good low frequency extension

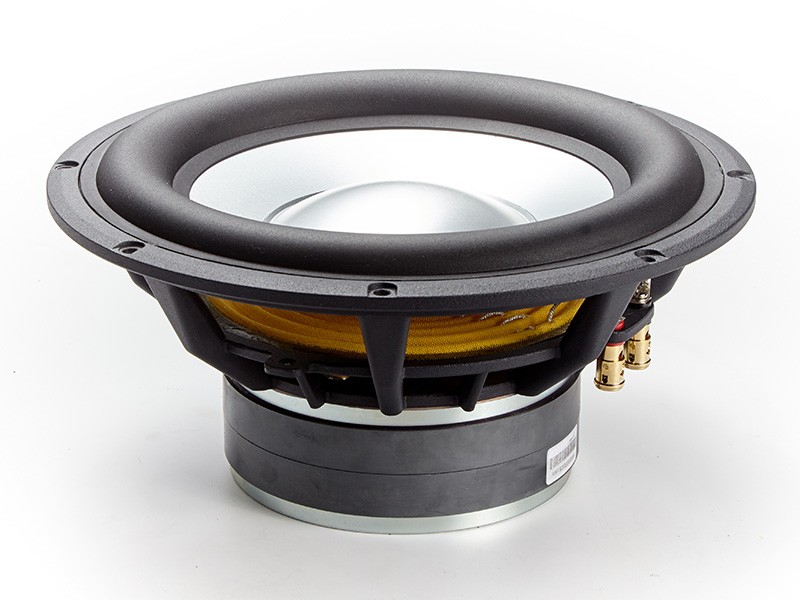

• Aluminum chassis, aluminum cone, nomex spider with attached tinsel wire
• High power handling

Design notes:

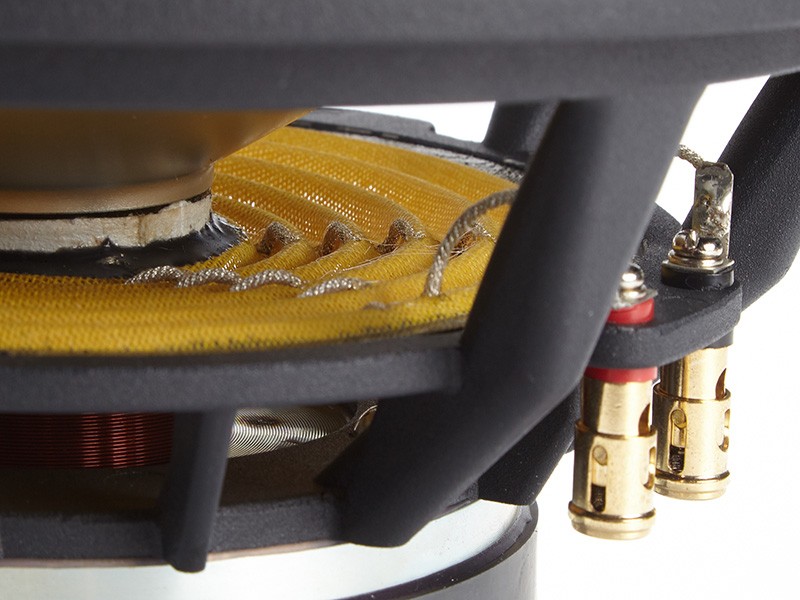

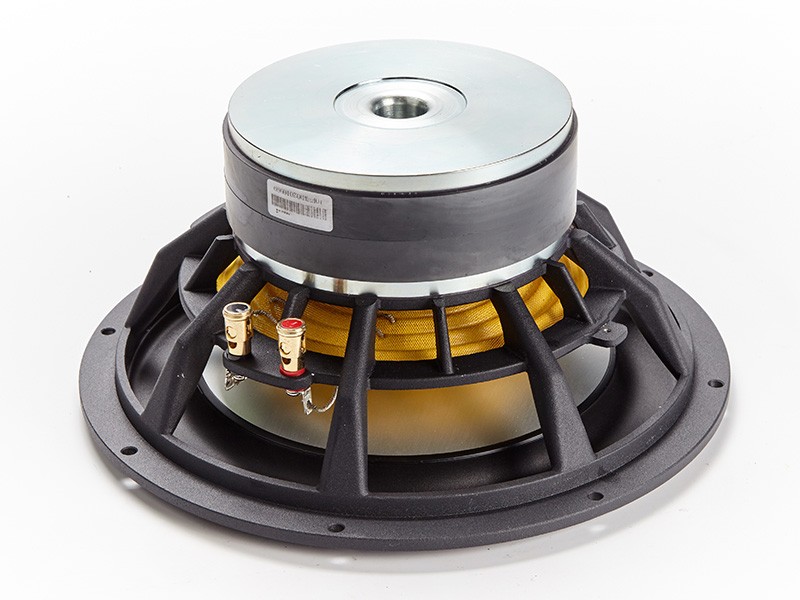

The 10FHW is a high efficiency, (87dB 1watt / 1 meter) 10-inch sub-woofer speaker with extended low frequency response and high power handling capability. The 10FHW uses a strong anodized aluminum cone assembly along with a single roll rubber surround. Spider is Nomex material with stitched-on tinsel wires. This ensures long lasting performance even in high powered applications. The chosen material combination provides remarkable strength, high efficiency and sustained output under extreme conditions. Magnetic CircuitREDCATT engineers have developed a ferrite based magnetic circuit, capable of delivering the highest level of performance, providing a consistent, high integrity magnetic flux gap, ultra low distortion characteristic and high efficiency cooling system. The magnetic structure has integrated two aluminum shorting rings. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability.

• Diameter: 10 inch
• Rated Impedance: 4 Ohm

• AES Power: 200 Watts
• Program Power: 400 Watts

• Diameter: 2 inch
• Winding wire : Copper
• Former: Glass Fiber
• Winding height: 32,3 mm

• Resonant frequency: 25Hz
• Re: 3.6 Ohm
• Qes: 0,4
• Qms: 13,72
• Qts: 0,39
• VAS: 57.9L
• Sd: 330.1cm2
• Mms: 110.4g
• BL: 12.7
• Le: 0,62 mH
• Sensivity: 86,6 dB

• Surround material: Rubber
• Cone material: Aluminum
• Spider: Nomex
• Plate thickness: 8 mm
• Peak to peak linear cone displacement: 20,15 mm
• Overall diameter: 269 mm
• Bolt circle diameter: 258 mm
• Baffle cutout dia: 239 mm
• Number of mounting holes: 8
• Depth (flange to rear): 117 mm
• Net weight: 6.1kg
